M1P28

project
mfg: Canton Optics x Westrn
  • FDA
  • ISO
  • CE
$4,362.00

Project achieved:

  • 47% lower MSRP than market average
  • CE; compliant with all EU directives
  • ISO; 13485 certification
  • FDA; Registered
  • TGA; Registration (Australia)
  • CSA; Certification (Canada)
  • 5-Year Warranty Coverage
  • 30-Day (Risk-Free) Returns
arrives between: May 28 - June 2

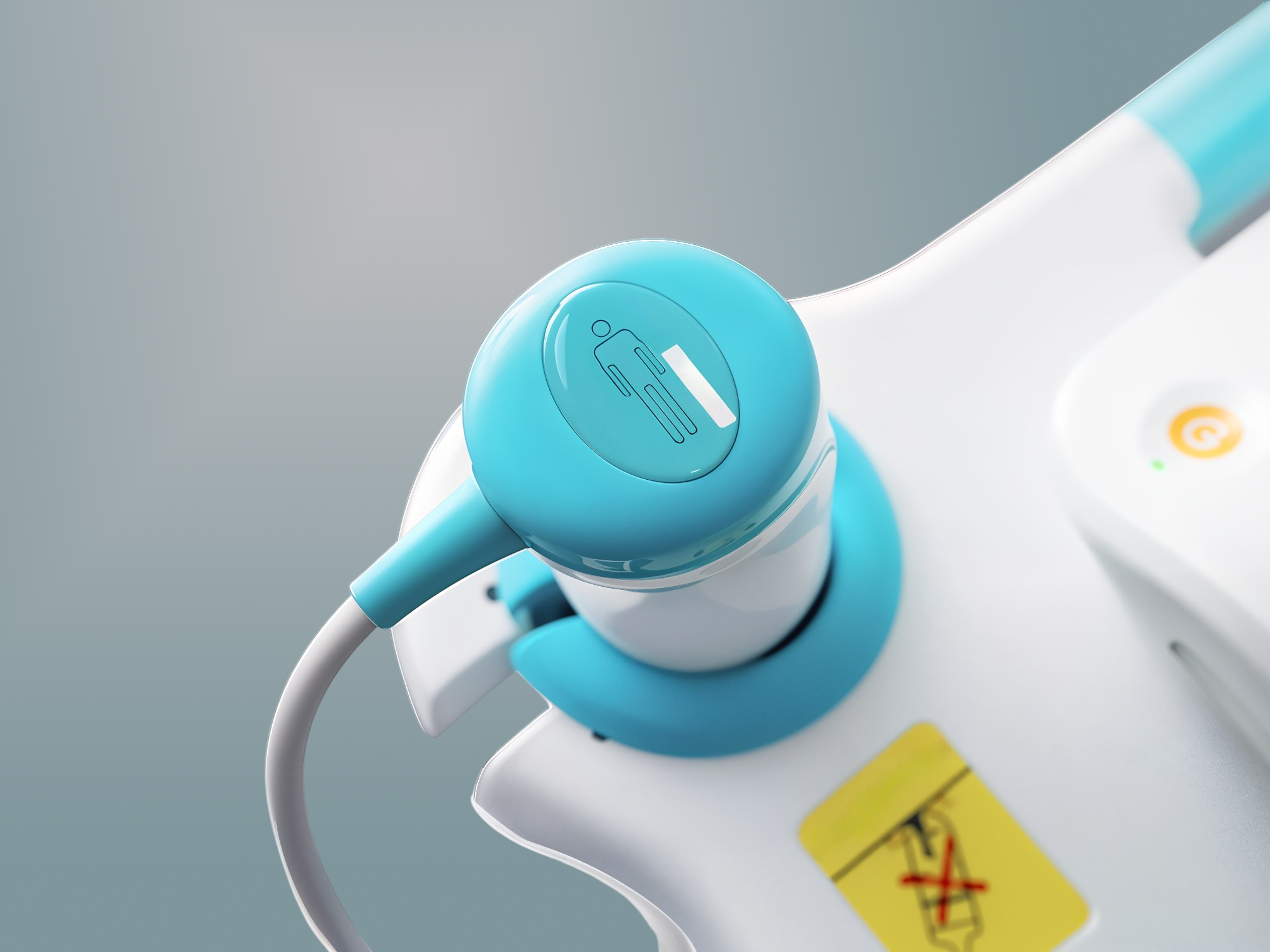

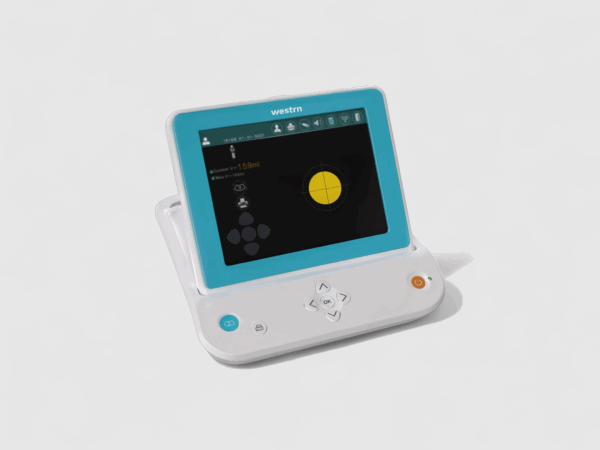

3D bladder scanner for accurate, noninvasive urinary volume assessment.

The M1P28 Bladder Scanner is a high-precision, portable ultrasound device engineered for accurate bladder volume measurement to support catheterization planning, urinary incontinence care, and evaluation of lower urinary tract dysfunction in male, female, and pediatric patients. Equipped with a 3D scanning probe and an intuitive 8.4” color touchscreen, the M1P28 offers both expert and easy display modes, real-time scan positioning guidance, and manual correction to enhance accuracy and ease of use. It features a scan range of 0–999 ml, scan depth of ≥140 mm, and an error range of ±15%, ±15 ml, ensuring reliable diagnostic results. Powered by a rechargeable lithium battery, the M1P28 includes a built-in thermal printer for instant documentation and 32GB of internal memory for extensive data storage. With a 2.6 MHz transducer, a 95° sway angle, and 180° rotation, this lightweight, battery-operated scanner delivers comprehensive and convenient bladder assessments across various clinical and rehabilitation settings.

  • 3D ultrasound scanning delivers accurate bladder volume assessments across all patient types.

    3D ultrasound scanning delivers accurate bladder volume assessments across all patient types.

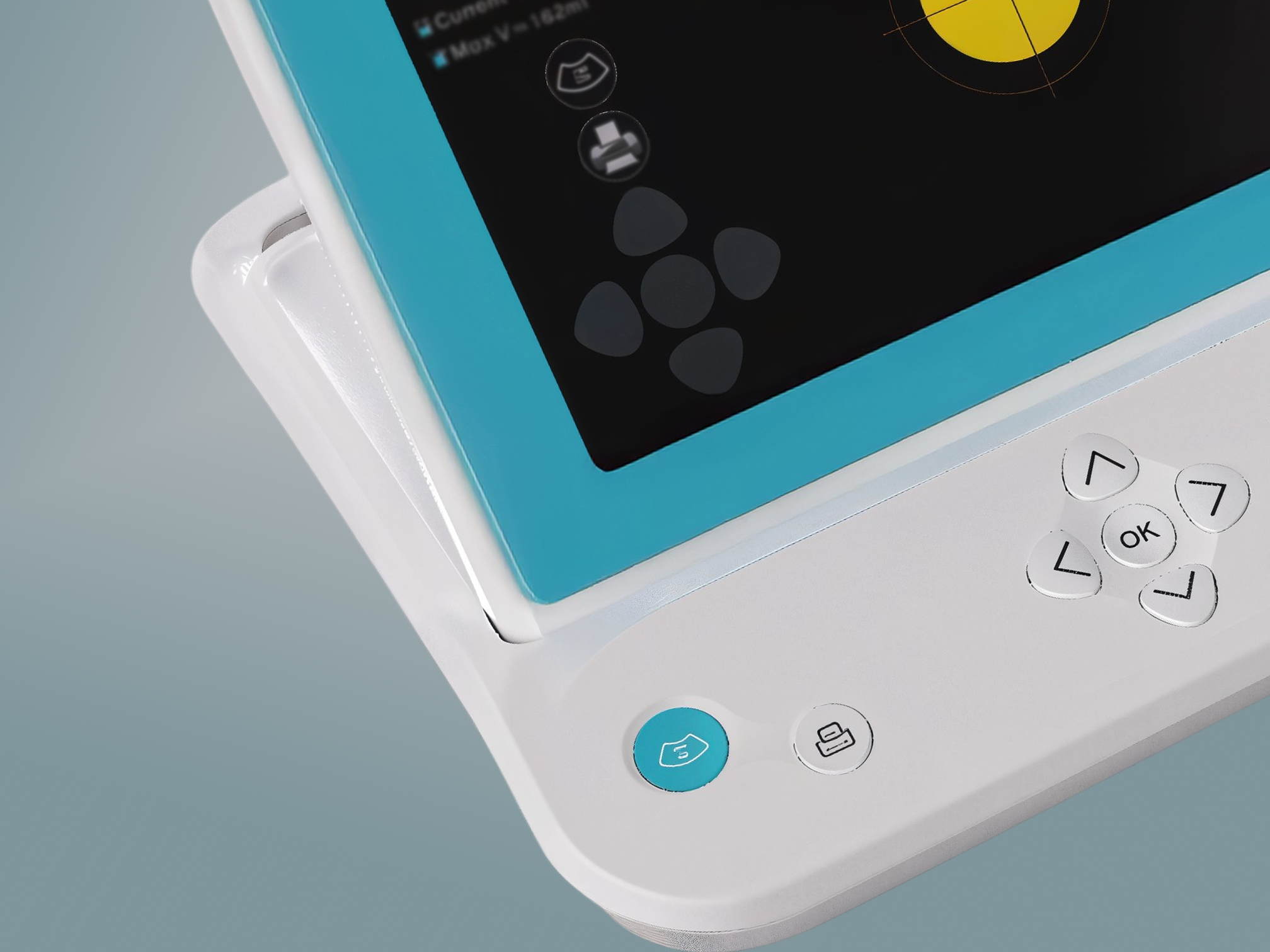

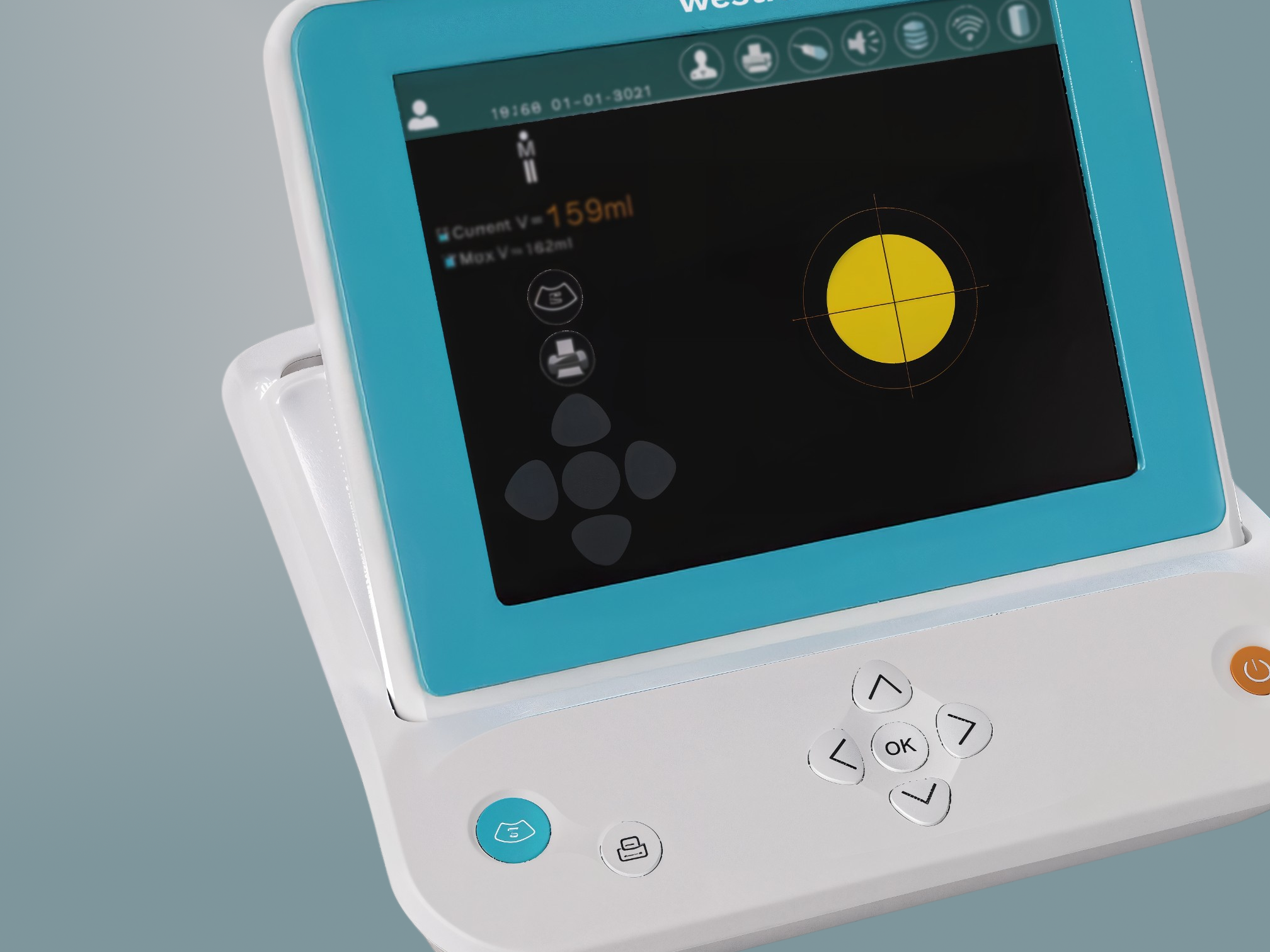

  • Large 8.4” touch screen enhances usability with expert and easy display modes.

    Large 8.4” touch screen enhances usability with expert and easy display modes.
  • Supports male, female, and pediatric modes for broad clinical versatility.

    Supports male, female, and pediatric modes for broad clinical versatility.
  • Fast, non-invasive measurements up to 999ml with ±15% or ±15ml error margin.

    Fast, non-invasive measurements up to 999ml with ±15% or ±15ml error margin.
  • Built-in thermal printer and 32GB storage allow instant documentation and data management.

    Built-in thermal printer and 32GB storage allow instant documentation and data management.
  • Rechargeable lithium battery ensures portable, uninterrupted operation in various settings.

    Rechargeable lithium battery ensures portable, uninterrupted operation in various settings.

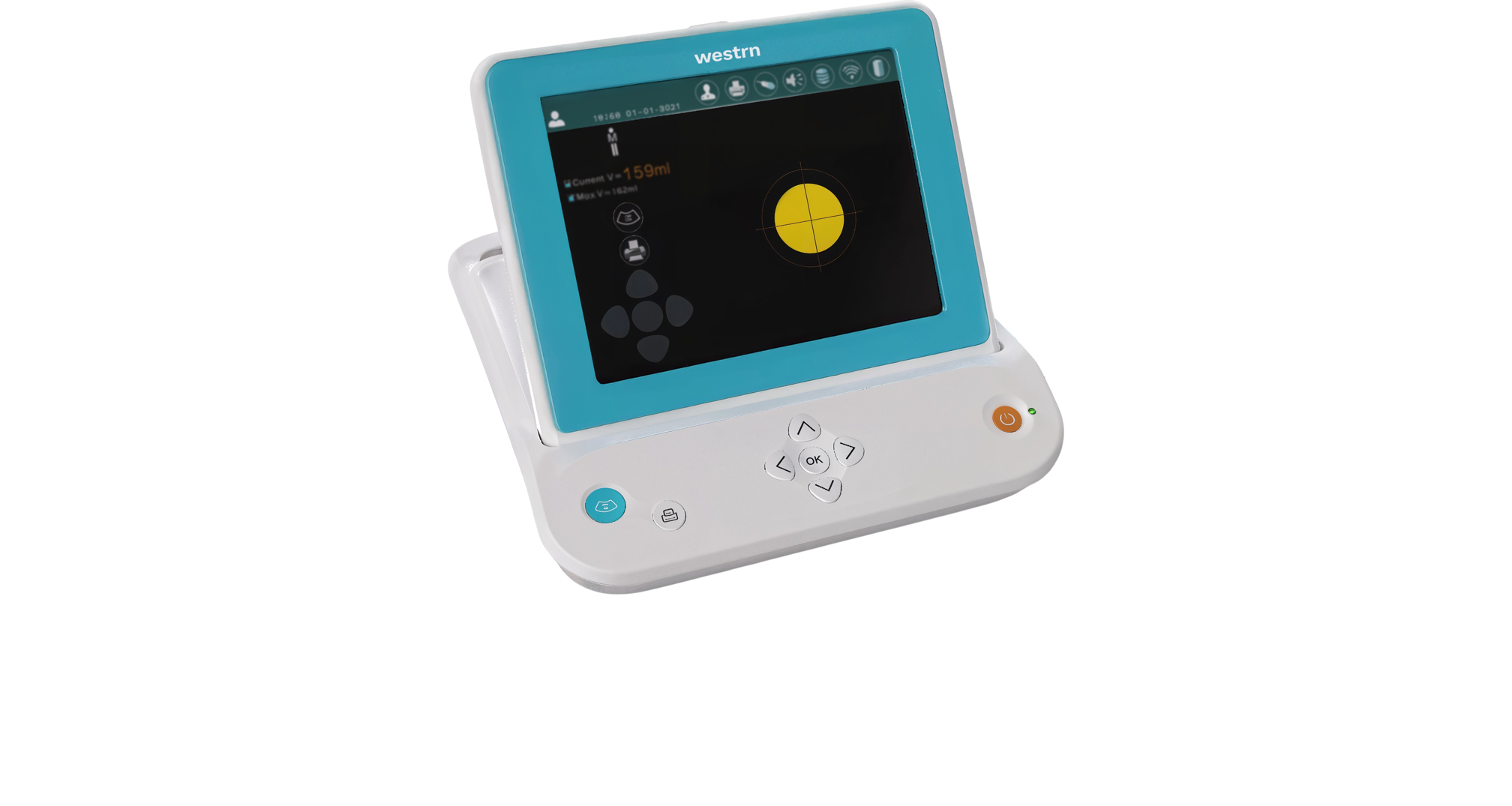

M1P28-Specifications

9.8” (L) x 7.1” (D) x 2.4” (H)

4.4 lbs

Specifications

M1P28

Primary Use Measures bladder urine volume for catheterization planning and urinary care
Application Areas Urinary retention, incontinence, and lower urinary tract dysfunction evaluation
Patient Types Male, Female, Pediatric
Scanning Modes Expert Mode and Easy Mode
Screen 8.4” Color TFT LCD Touch Screen
Built-in Features Thermal printer, patient ID input (up to 12 digits), scan location prompt
Scan Method 3D Imaging
Transducer Frequency 2.6 MHz
Scan Depth ≥ 5.51"
Scan Range 0 – 999 ml
Measurement Error ±15% or ±15 ml (whichever is greater)
Sway Angle 95° ± 2°
Rotate Angle 180° ± 2°
Display Modes Expert and Easy
Manual Correction Supported
Patient ID Input Up to 12 characters
Power Supply Rechargeable lithium battery
Battery Type Built-in, rechargeable
Memory Capacity 32 GB internal storage
