O1M16
Project achieved:
- 66% lower MSRP than market average
- CE ; compliant with all EU directives
- ISO; 13485 certification
- FDA; Registered
- 5-Year Warranty Coverage
- 30-Day (Risk-Free) Returns

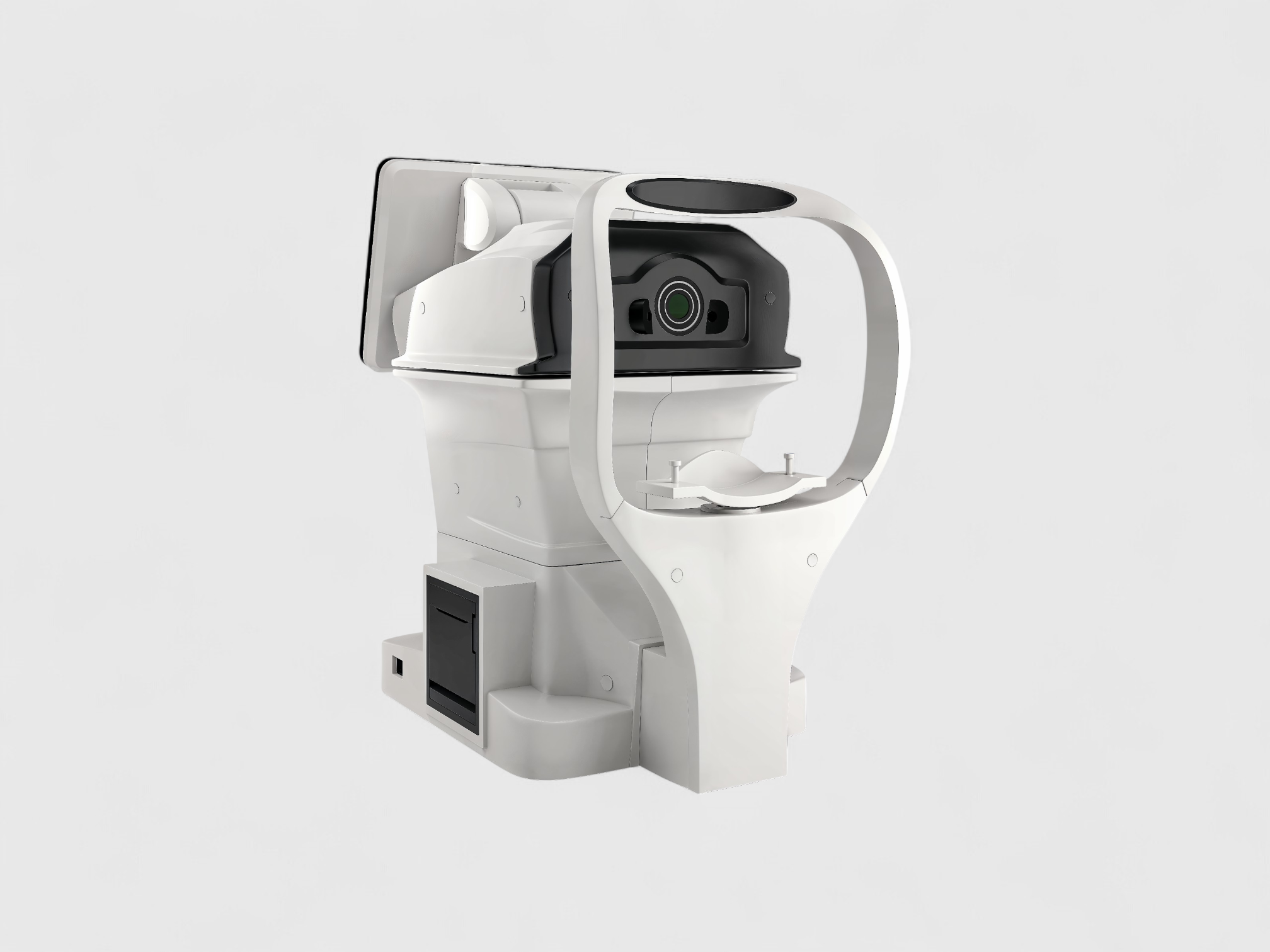

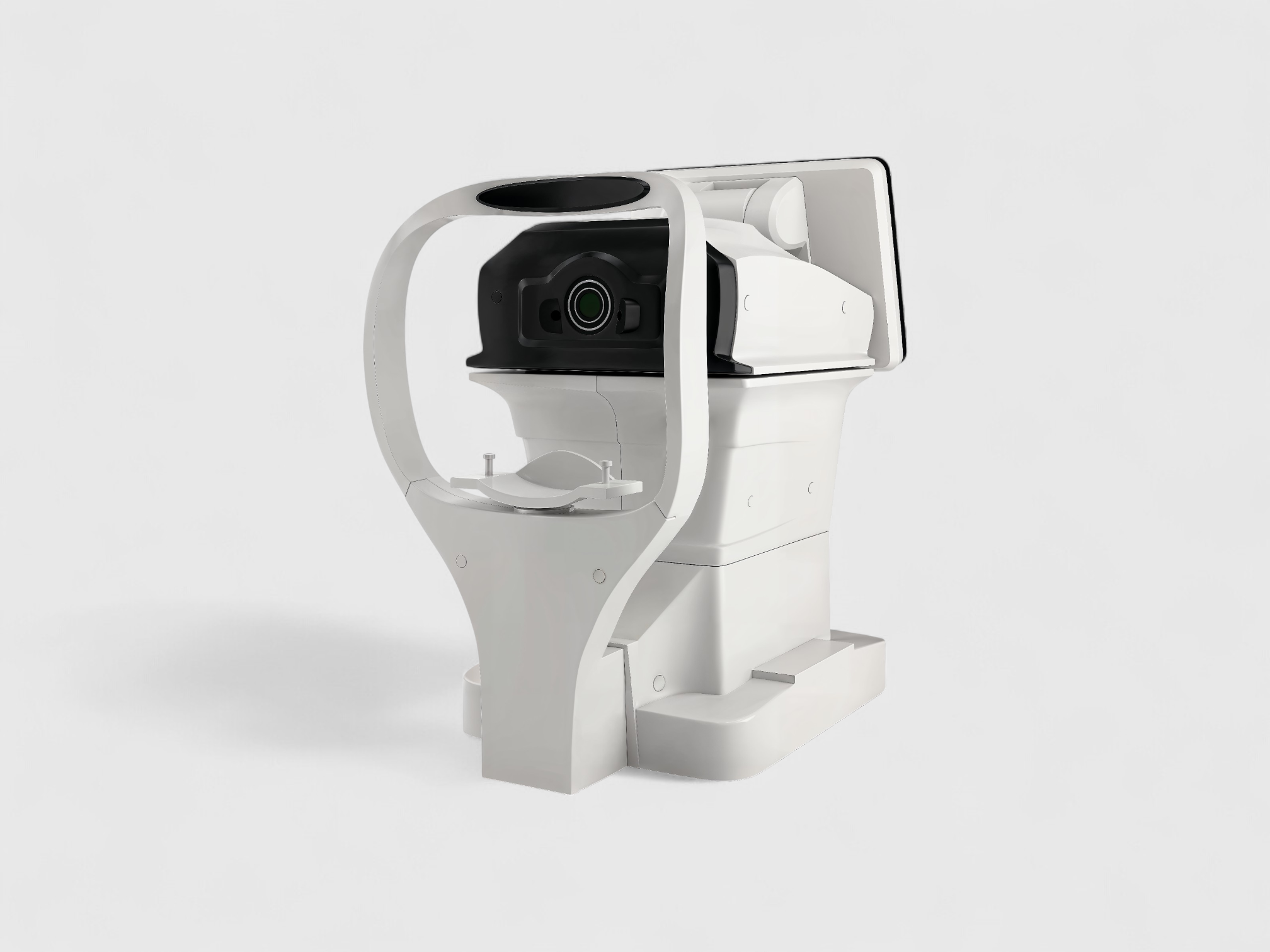

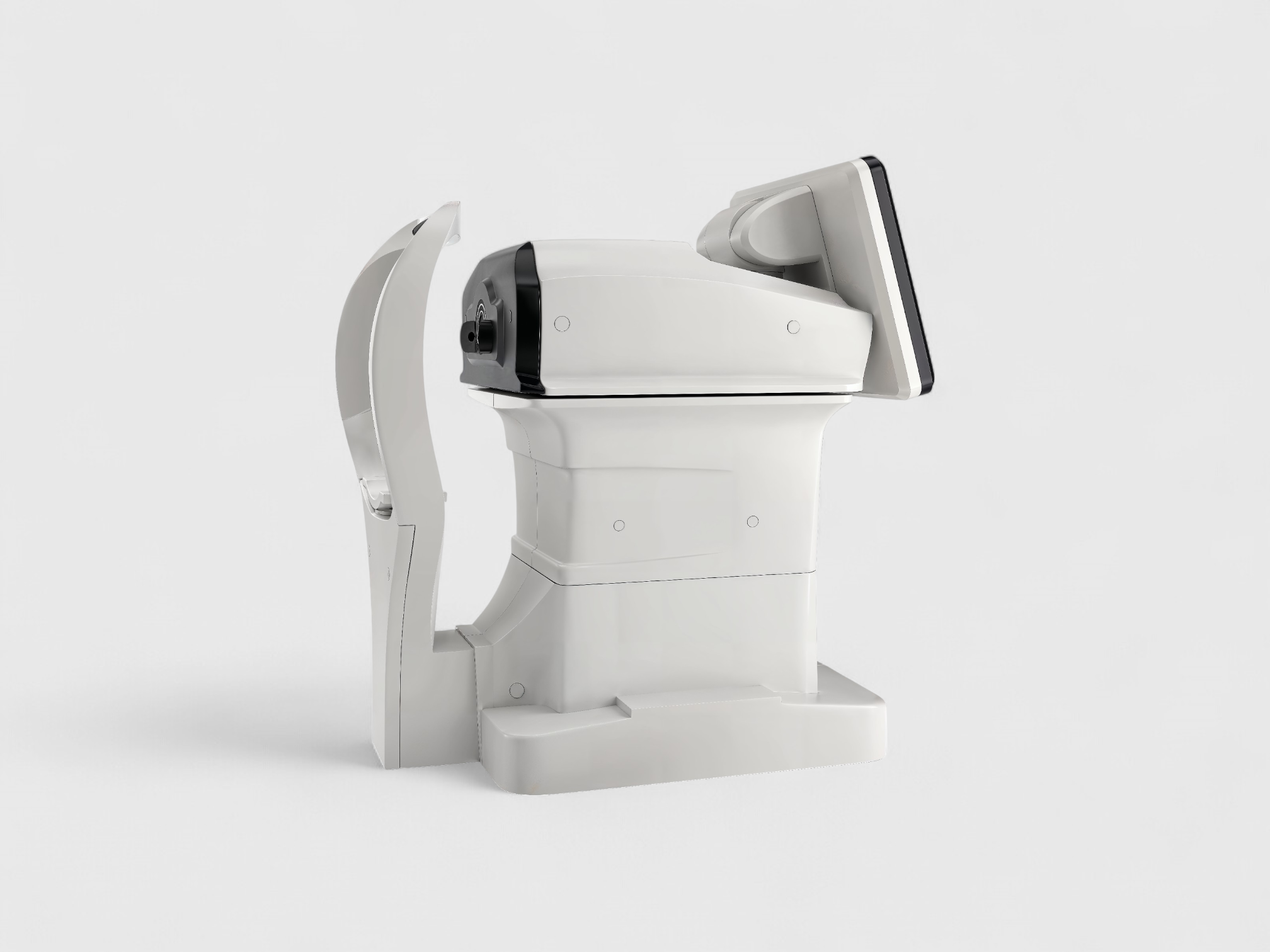

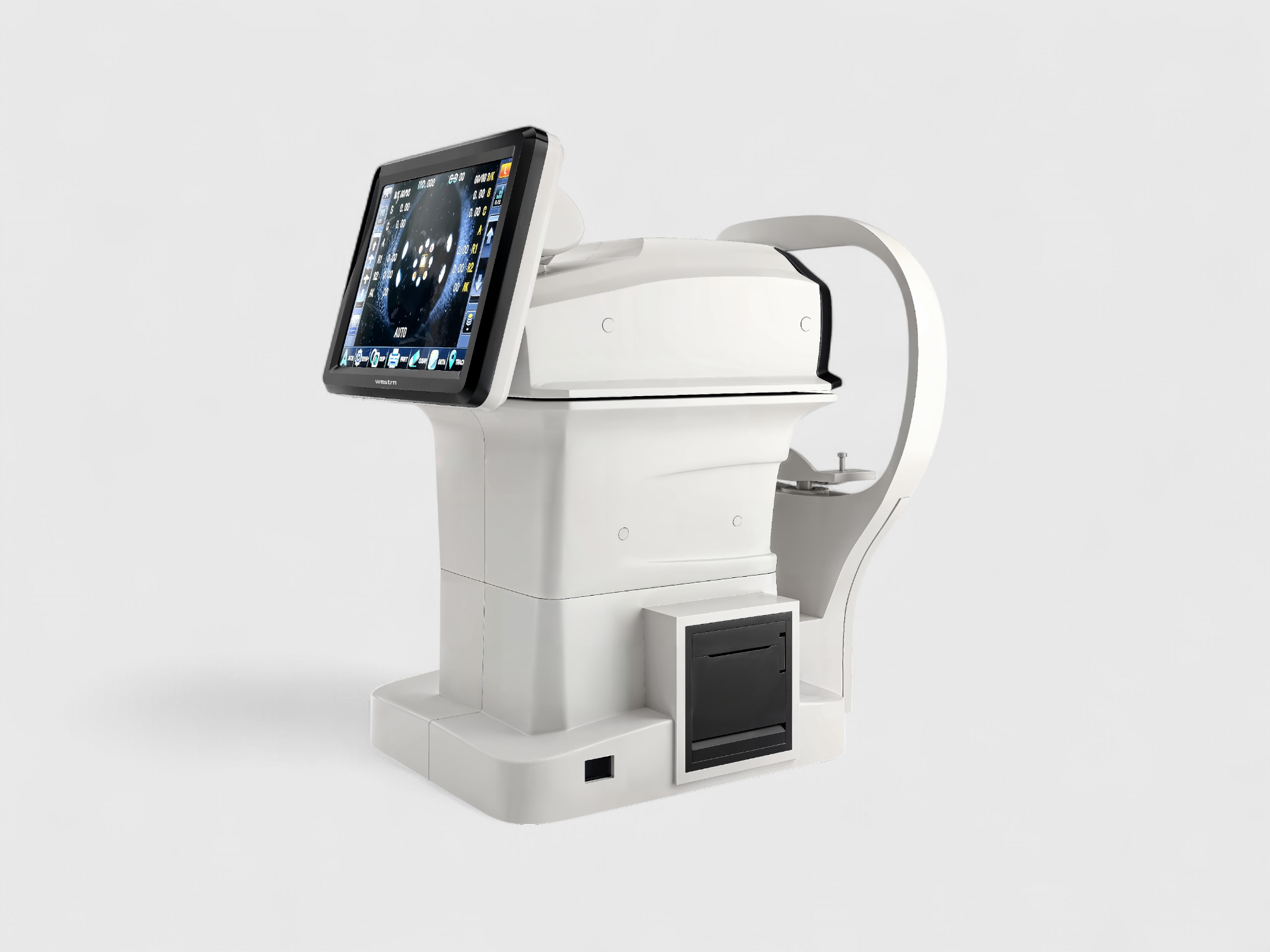

Advanced autorefractor/keratometer with 3D tracking and touchscreen display.
The O1M16 Autorefractor/Keratometer is a fully automated, high-precision diagnostic device designed to streamline refraction and keratometry exams with speed and reliability. Featuring 3D auto-tracking, auto-focus, and a crystal-clear 10.4” swivel and tilt touchscreen, the O1M16 delivers effortless operation and fast, accurate measurements—even on pupils as small as 2.0 mm. Using a hexagonal prism system for superior refractive data, it measures sphere from -25D to +20D, cylinder from -8D to +8D, and keratometry curvature with increments as fine as 0.01 mm. It also supports vertex distances from 0 to 15 mm, provides PD measurements from 5 to 90 mm, and includes astigmatism and corneal diameter analysis with high resolution. The built-in thermal printer with auto-cut, color fogging chart, and universal 100–240V power compatibility round out a smart, compact system built to meet the needs of busy optometry and ophthalmology clinics.
-

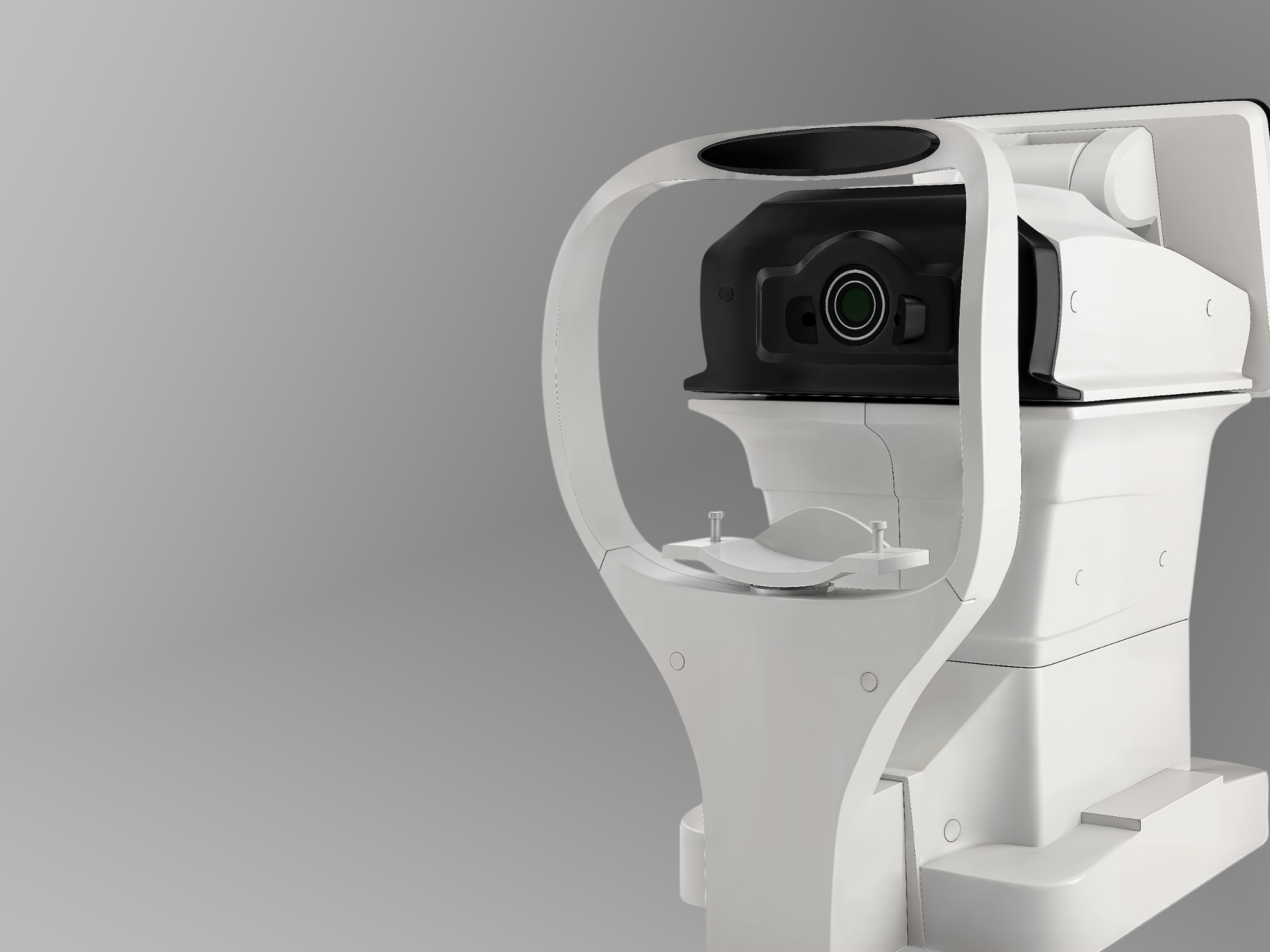

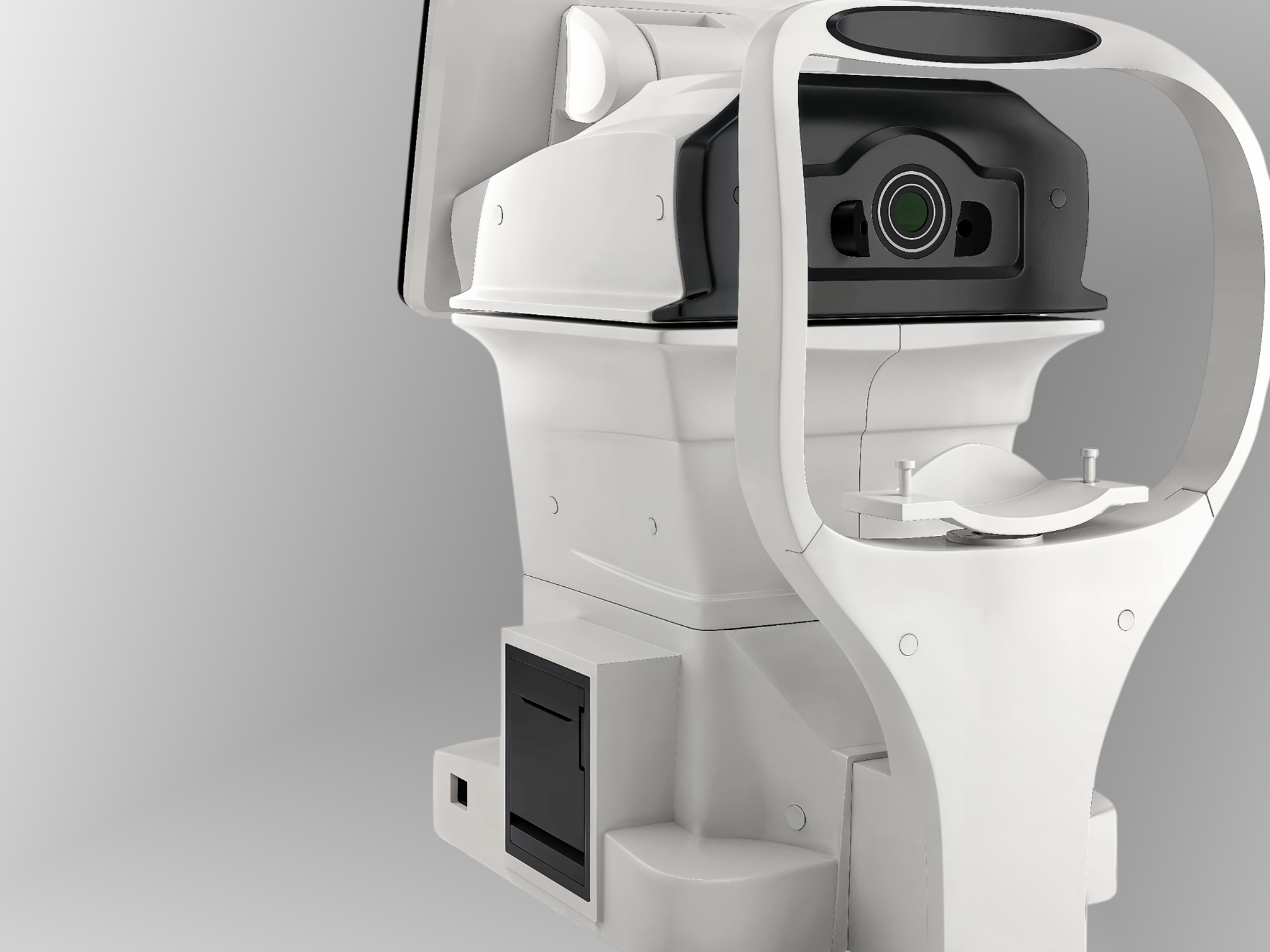

3D tracking with auto-focus ensures precise alignment and effortless operation.
-
Hexagon prism-based refractive measurement delivers high accuracy and reliability.
-

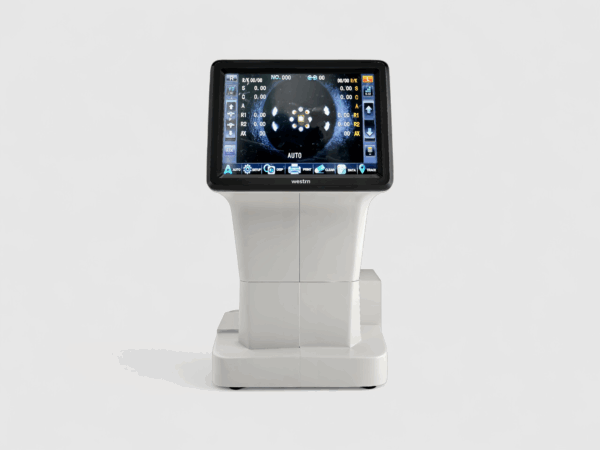

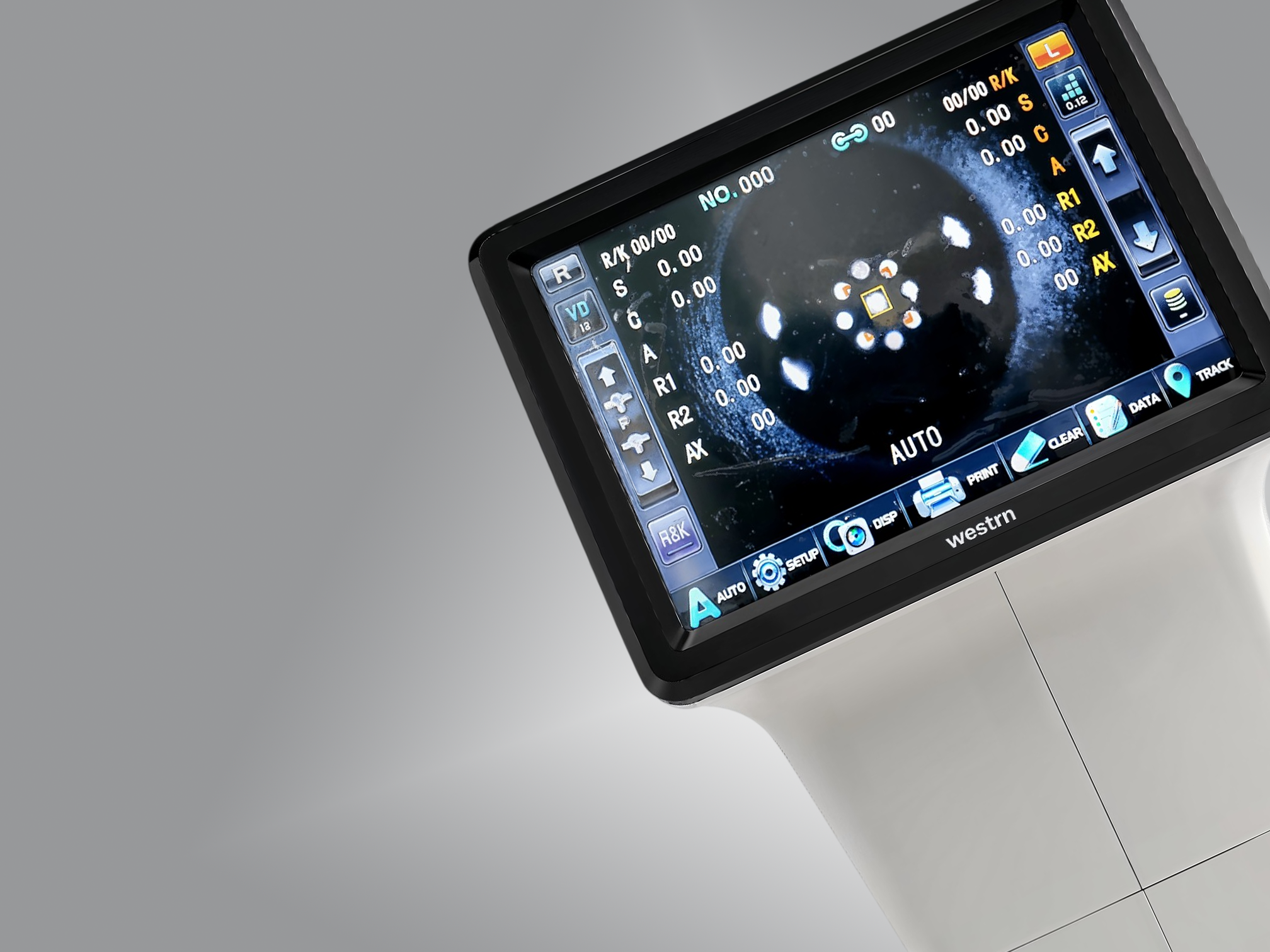

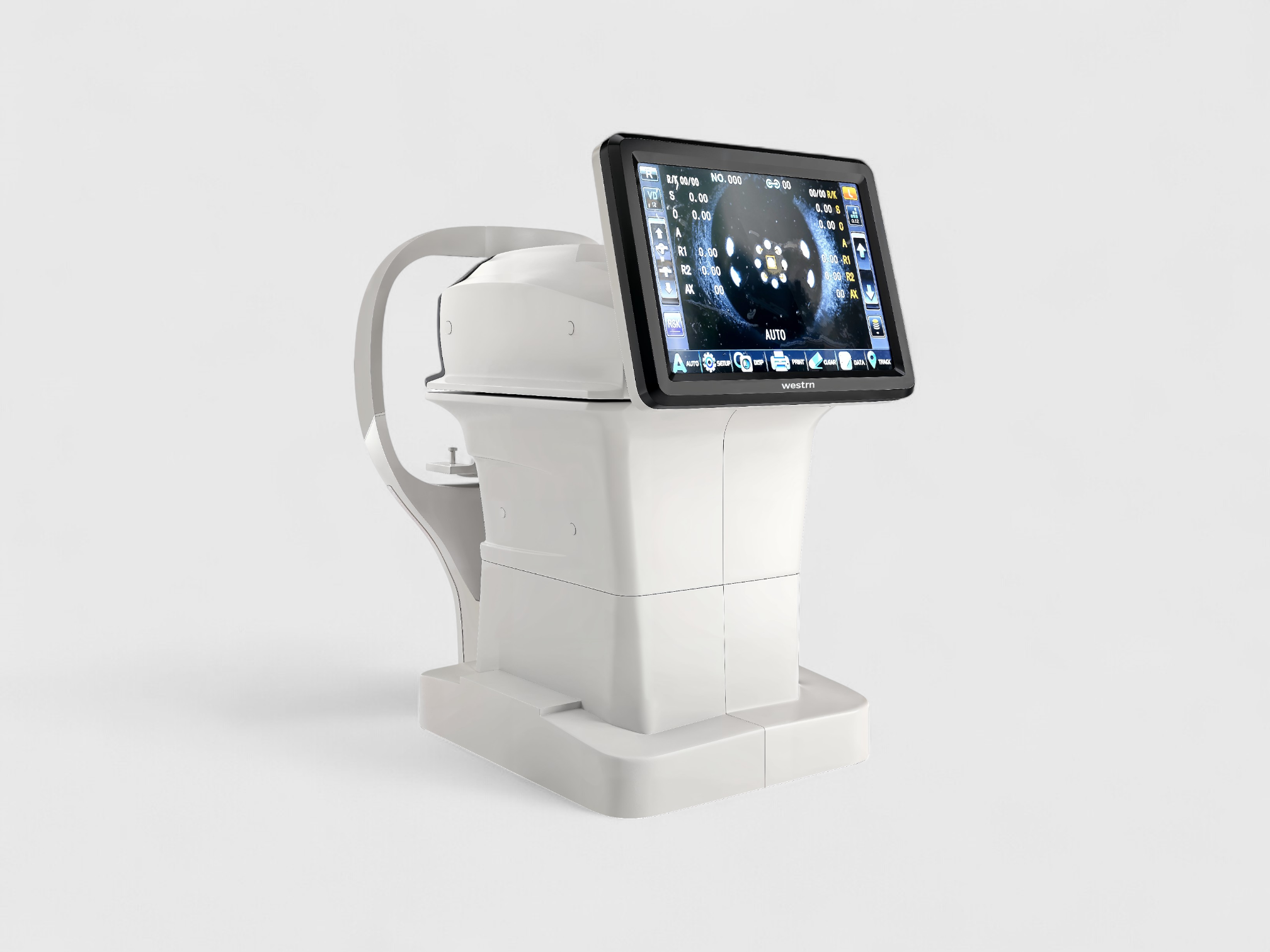

Large 10.4” swivel-and-tilt touchscreen enhances ergonomics and operator comfort.
-

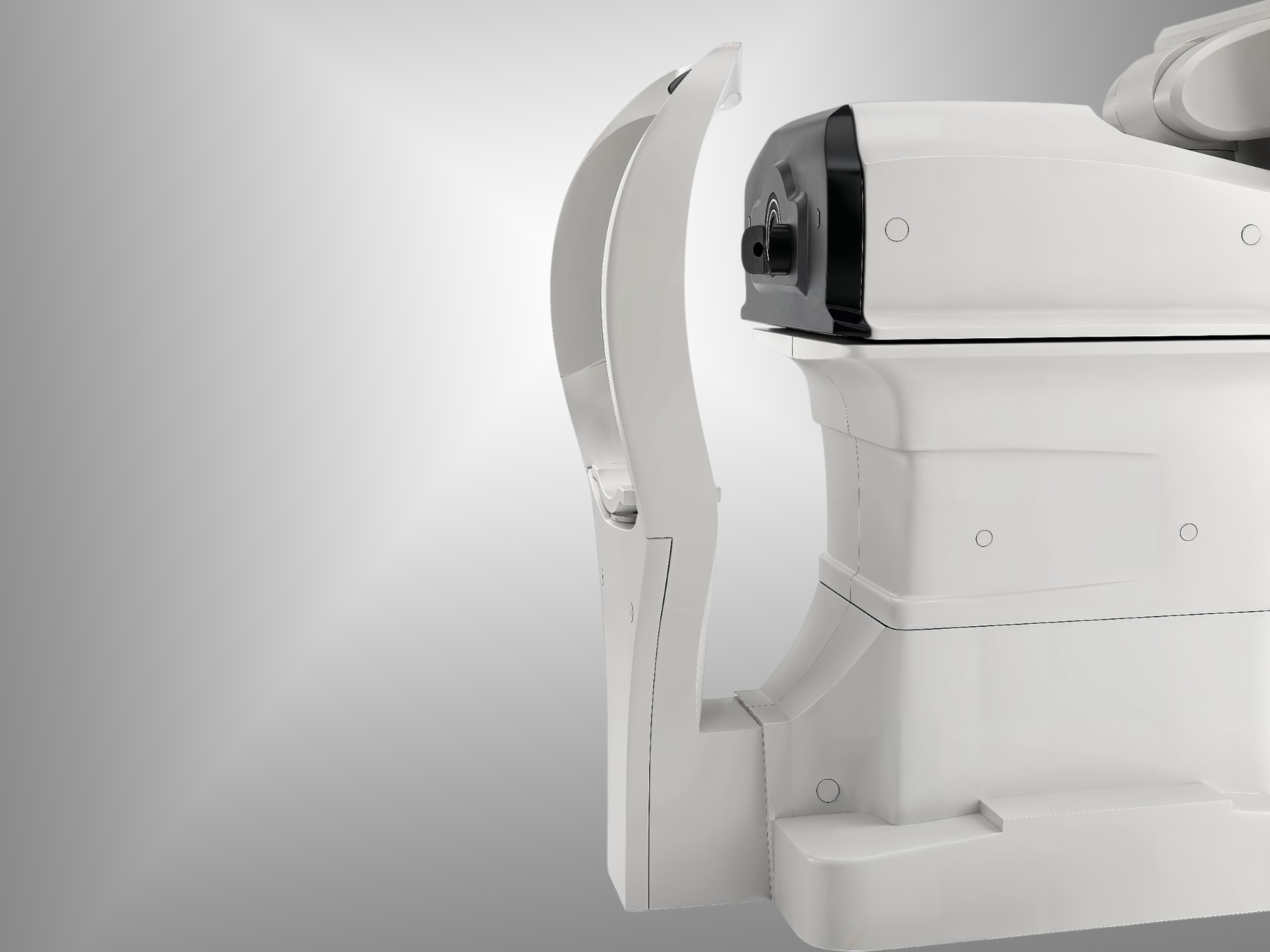

Measures pupils as small as 2.0mm, expanding use for pediatric and difficult cases.
-

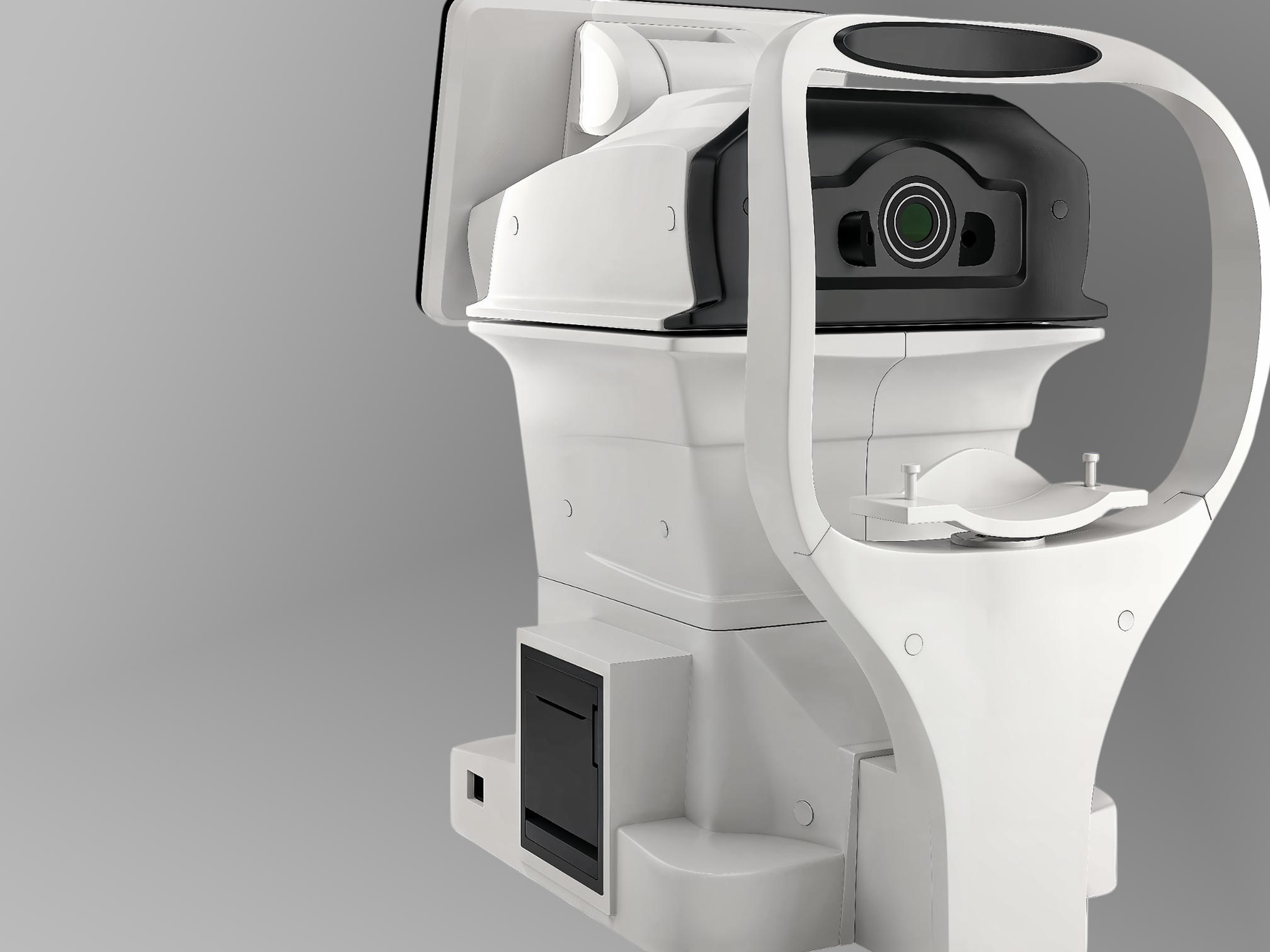

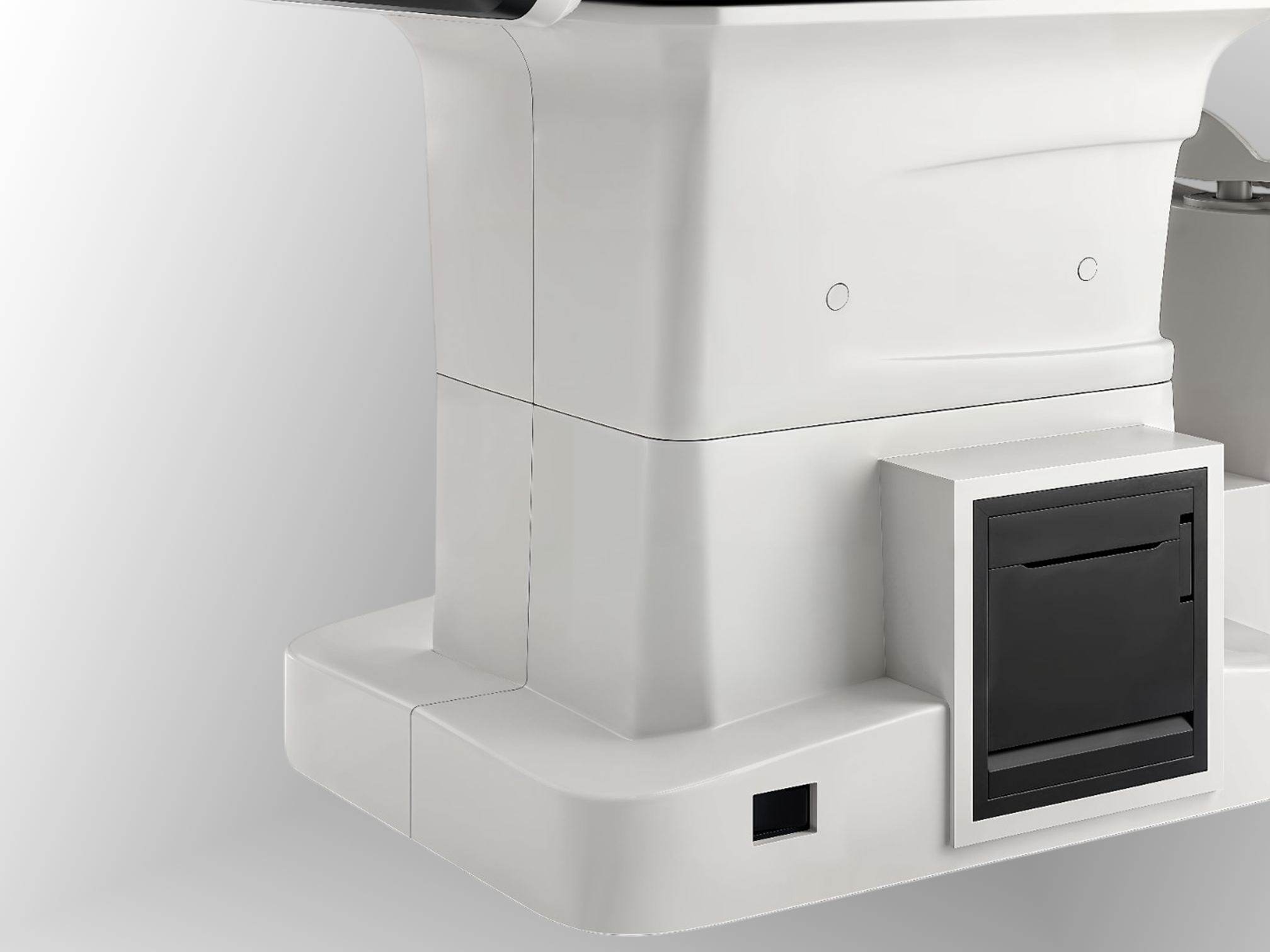

Built-in thermal printer with auto-cut streamlines workflow and report generation.
-
Wide measurement ranges for refraction and keratometry support diverse clinical needs.
11.3” (L) x 17.52” (D) x 19.3” (H)
44 lbs

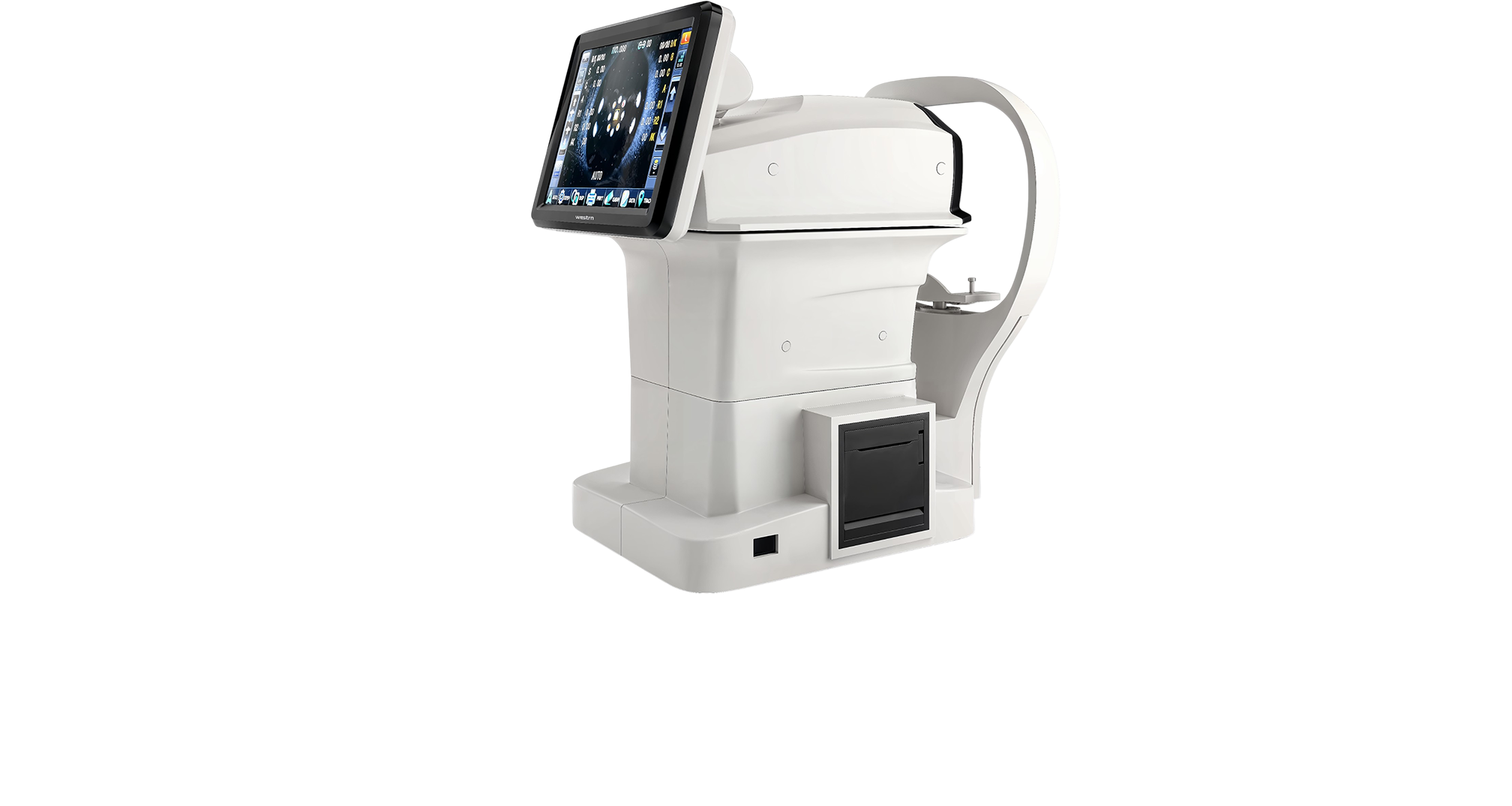

Specifications
O1M16
| Display | 10.4” swiveling, tilting TFT LCD touchscreen |
|---|---|
| Chart Type | Color fogging chart |
| Printer | 57 mm thermal printer with automatic cutting |
| Minimum Pupil Size | 2.0 mm |
| Power Supply | 100 V – 240 V, 50 Hz – 60 Hz |
| Vertex Distance (VD) | 0 mm, 12 mm, 13.75 mm, 15 mm |
| Sphere (SPH) | -25.00 D to +20.00 D (at VD = 12 mm) Steps: 0.12 D |
| Cylinder (CYL) | -8.00 D to +8.00 D Steps: 0.12 D |
| Axis | 0° to 180° Steps: 1° |
| Pupillary Distance (PD) | 5 mm to 90 mm Steps: 1 mm |
| Corneal Radius of Curvature | 5.0 mm to 10.0 mm Steps: 0.01 mm |
| Corneal Power (K) | 33.75 D to 67.50 D Steps: 0.12 D / 0.25 D |
| Corneal Astigmatism | 0.0 D to 0.8 D Steps: 0.12 D / 0.25 D |
| K Axis | 1° to 180° Steps: 1° |
| Corneal Diameter | 2.0 mm to 15.0 mm Steps: 0.1 mm |
