Description:

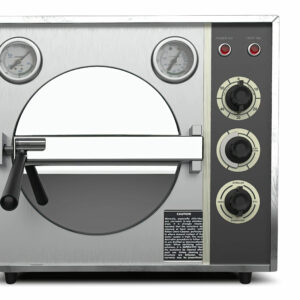

The OCR Omni-Clave is a countertop, gravity-displacement steam sterilizer built around a 9-inch-diameter × 18-inch-deep stainless-steel chamber that swallows two full-size trays. A front-panel selector (Fill ▸ Sterilize ▸ Vent) manages the 4-quart integral reservoir, while a 60-minute timer, dual temperature/pressure gauges and a four-point, safety-interlocked door keep cycles simple and secure. Triple 1 600 W heaters bring the load from cold to 250 °F in about 12 minutes, then hold a calibrated 270 °F set-point; an ASME E-type valve caps chamber pressure at 35 psi. Because the unit draws only 110–120 V at household current and weighs ≈ 92 lb, it slips on any 17 × 22 in counter—no plumbing or IT needed—and its all-analog design makes field service a wrench-and-gasket job.

Economic Advantage:

When introduced, the OCR let small clinics enjoy the throughput of a 5-gallon, 18-inch chamber without the cost or downtime of floor models or vacuum pumps. Its manual valve block and off-the-shelf parts meant owners could swap a bellows or door gasket in minutes, extending life well past the 30-year mark; many labs still run serial-number A4 units today. Add the freedom from plumbing and the quick heat-up cycle, and each OCR effectively turned one operatory’s countertop into a high-reliability sterilization hub—boosting instrument turnover while slashing service contracts and consumable spend.
